Joone Hur (joone.hur@intel.com, joone@chromium.org) — March 4, 2019

Introduction

In theory, applications with Ozone in Chromium can choose its backends such as X11, DRM/GBM, Wayland, or headless at runtime. However, if we build a content_shell with the ozone-gbm (DRM/GBM) backend, there is nothing to be rendered on the screen because displays are not configured. The main reason is that a display configurator is not implemented for ozone-gbm clients by default. Therefore, if we want to render the UI of ozone-gbm clients, each ozone-gbm client has to implement its own display configurator like ozone_demo does. However, each client will have the same display configuration handlers, which is inefficient. Also, display management features such as multiple display support, HDCP, and display layout manager are already implemented in CrOS, so we need a way to share those features with non-CrOS applications such as digital signage, kiosk, IVI, set-top box, digital TV, IoT systems, etc.

This document describes how to implement a single interface for ozone-gbm clients to configure displays with the CrOS DisplayManager and DisplayConfigurator, and how it can be used in ozone-gbm clients.

Goal

Provide a single interface for managing and configuring displays for ozone-gbm clients.
Allow ozone-gbm clients such as CrOS, ozone_demo, etc. to use the interface.

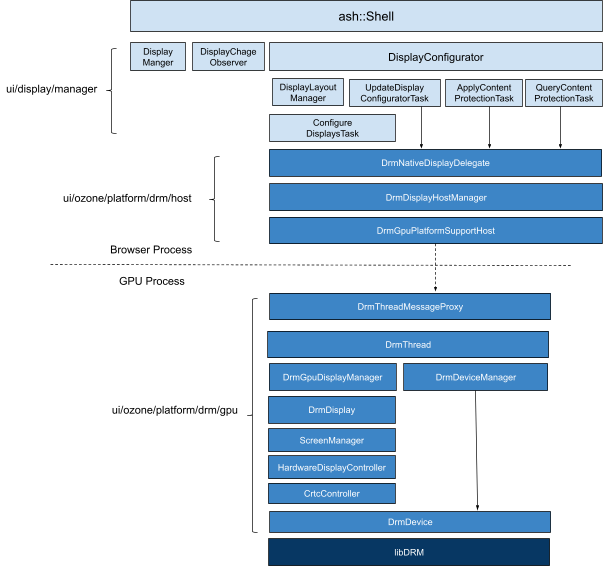

Current CrOS Architecture for Display Management

ash::Shell owns DisplayManager and DisplayConfigurator. It also depends on ui::DisplayChangeObserver, which is used to create display information to pass it to DisplayManager from ui::DisplayConfigurator by observing display configuration callbacks.

However, we need to have a single interface for configuring displays so that any ozone-gbm client can use the display configuration feature more easily.

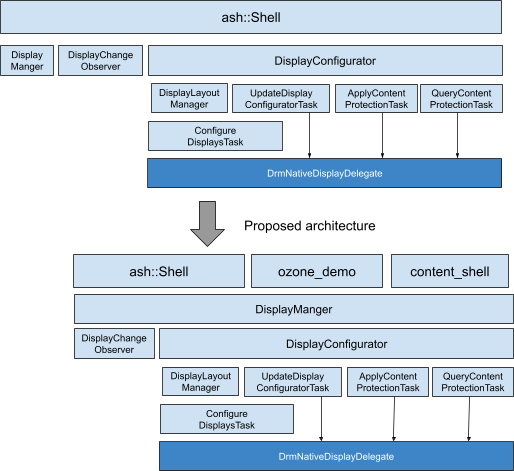

Proposed Architecture

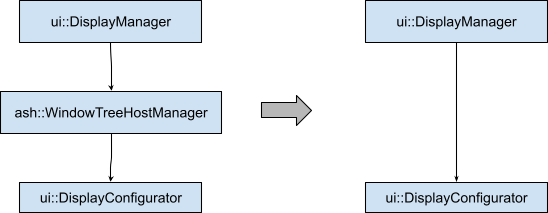

Let DisplayManager own DisplayConfigurator (Done)

DisplayManager owning DisplayConfigurator

bool DisplayManager::SetDisplayMode(int64_t display_id,
                                    const ManagedDisplayMode& display_mode) {
  ...
#if defined(OS_CHROMEOS)
  else if (resolution_changed && configure_displays_)
    delegate_->display_configurator()->OnConfigurationChanged();
#endif
  ...
}

Currently, ui::DisplayManager interacts with ui::DisplayConfigurator through ash::WindowTreeHostManager, but it can directly access ui::DisplayConfigurator by allowing DisplayManager to own DisplayConfigurator. So, we could avoid chaining function calls in the above code.

Single Interface for Display Configuration and Management

ui::DisplayManager can be the single interface for ozone-gbm clients by moving DisplayConfigurator and DisplayChangeObserver under DisplayManager, which can simplify the interface between the CrOS shell and ui/display/manager. Ozone-gbm clients can easily use display configuration/management features by only accessing DisplayManager.

Set a callback instead of creating a NativeDisplayObserver

In this architecture, ozone-gbm clients will not have a NativeDisplayObserver, so there is no way to observe the change of display configuration. Instead, we can set a callback function in DisplayManager so that the callback function can be triggered when a display is configured.

Implementation

1st phase: separate Display Configuration code from CrOS (Done)

First, we need to separate the display configuration code from CrOS by introducing the build_display_configuration build flag so that it could be easily enabled for any ozone-gbm clients, which was already committed to the trunk:

https://chromium.googlesource.com/chromium/src/+/d3ae8737f7186154d2fdc3ccc5fe43bf290f91b5

This CL moved all files in ui/display/manager/chromeos to ui/display/manager and adds the build_display_configuration GN arg.

2nd phase: Add DISPLAY_CONFIGURATION macro

However, if we try to build content_shell with build_display_configuration without OS_CHROMEOS, there are still build breaks because some of the display configuration code belongs to the CrOS build, so we need to separate that code from the CrOS build by introducing the DISPLAY_CONFIGURATION macro.

if (build_display_configuration) {
    defines += [ "DISPLAY_CONFIGURATION" ]
}

Also, CrOS-specific code in the display configuration code should be guarded by the OS_CHROMEOS macro as follows:

#if defined(OS_CHROMEOS)
  if (!chromeos::IsRunningAsSystemCompositor())
    return cached_displays;
#endif

[WIP] https://chromium-review.googlesource.com/c/chromium/src/+/1399472

3rd phase: Make ozone_demo work with DisplayManager and DisplayConfigurator without its own display configurator

Here is the code example for ozone_demo:

WindowManager::WindowManager(std::unique_ptr<RendererFactory> renderer_factory,
                             base::OnceClosure quit_closure)
    : quit_closure_(std::move(quit_closure)),
      renderer_factory_(std::move(renderer_factory)) {
  if (!renderer_factory_->Initialize())
    LOG(FATAL) << "Failed to initialize renderer factory";

  std::unique_ptr<display::NativeDisplayDelegate> delegate(
      ui::OzonePlatform::GetInstance()->CreateNativeDisplayDelegate());

  if (delegate) {
    std::unique_ptr<display::Screen> screen(aura::TestScreen::Create(
        gfx::ScaleToCeiledSize(gfx::Size(800, 600), 2.0)));
    display::Screen::SetScreenInstance(screen.get());

    display_configurator_ = std::make_unique<display::DisplayConfigurator>();
    display_configurator_->Init(std::move(delegate), false);
    display_manager_ =
        std::make_unique<display::DisplayManager>(std::move(screen));
    if (!display_manager_->InitFromCommandLine()) {
      display_change_observer_ =
          std::make_unique<display::DisplayChangeObserver>(
              display_configurator_.get(), display_manager_.get());
      display_configurator_->AddObserver(display_change_observer_.get());
      display_configurator_->set_state_controller(
          display_change_observer_.get());
      display_configurator_->ForceInitialConfigure(base::BindRepeating(
          &WindowManager::OnConfigured, base::Unretained(this)));
    } else
      display_manager_->InitDefaultDisplay();
  } else {
    LOG(WARNING) << "No display delegate; falling back to test window";
    int width = kTestWindowWidth;
    int height = kTestWindowHeight;
    sscanf(base::CommandLine::ForCurrentProcess()
               ->GetSwitchValueASCII(kWindowSize)
               .c_str(),
           "%dx%d", &width, &height);

    DemoWindow* window = new DemoWindow(this, renderer_factory_.get(),
                                        gfx::Rect(gfx::Size(width, height)));
    window->Start();
  }
}

4th phase: Let DisplayManager own DisplayConfigurator

ui::DisplayManager will own DisplayConfigurator and DisplayChangeObserver, so ozone-gbm clients will access ui::Display information by configuring displays only through ui::DisplayManager.

[Done] https://chromium-review.googlesource.com/c/chromium/src/+/1418315

5th phase: enable zero-copy texture and video accelerations for gbm-clients

We can enable zero-copy texture upload and video accelerations for any ozone-gbm clients like CrOS.

6th phase: apply the new display configuration interface to content_shell with support for Layout Test

We can test the hardware acceleration features in a real browsing environment, which is better than unit tests.

Another approach is that, instead of applying the display configuration/management feature to content_shell, we can create a bodiless shell with a new ozone backend (bodiless).

Future plan: implement ozone-bodiless

ozone-bodiless is a new ozone platform that is designed for applications that want to enable hardware acceleration features such as video acceleration, hardware overlay, and zero-copy texture upload on Linux systems. It provides full-screen browsing support with chromeless, which allows for the creation of new UI using web technologies. Here are some functionalities that ozone_bodiless will implement:

Always one WTH with window size equal to display size for each display.
Multiple displays support
Input (keyboard, mouse, and touch) and cursor support
Pop-up window support
Video accelerations and hardware overlay support
HDCP support

[Bug] https://bugs.chromium.org/p/chromium/issues/detail?id=936704

Bugs

Ozone-GBM doesn't configure displays on content_shell
Allow to run ozone-gbm on a Linux/Intel desktop
Run content_shell with ozone-gbm on a Linux desktop
Implement a single interface for ozone-gbm clients to configure displays

Change List

https://chromium.googlesource.com/chromium/src/+/d3ae8737f7186154d2fdc3ccc5fe43bf290f91b5 (Done)
https://chromium-review.googlesource.com/c/chromium/src/+/1220719 (WIP)
Let DisplayManager own DisplayConfigurator (Done)
